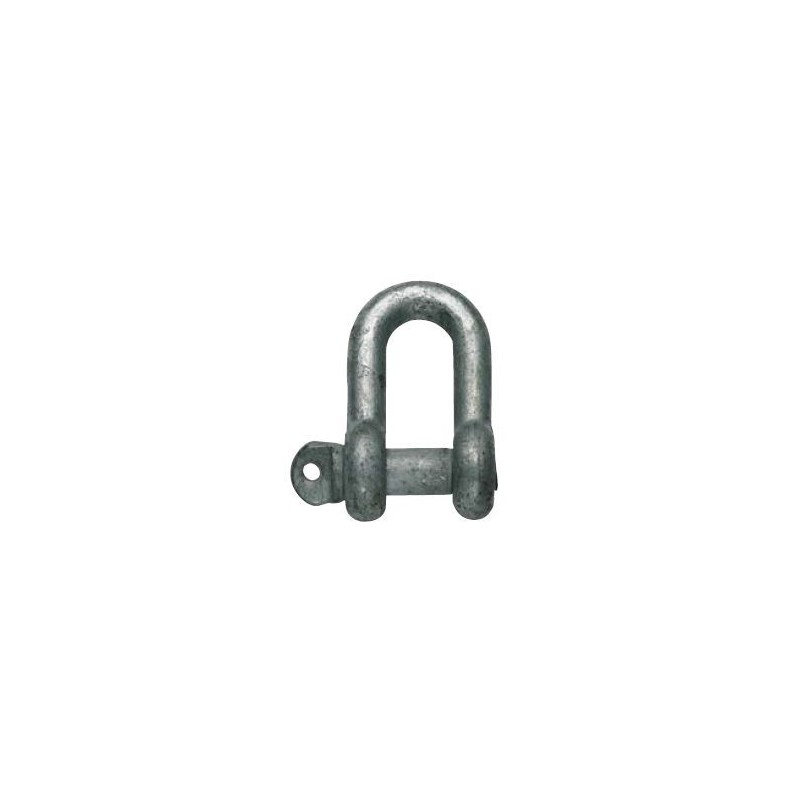

Szakla z bolcem z oczkiem, zbliżona do DIN 82101 format A
Numer katalogowy:
![]()
- Siła zerwania = 4-krotny udźwig
- Powierzchnia ocynkowana
| Udźwig w kg | Wymiary w mm | Waga 1 szt. w kg | Nr artykułu | |||||
|---|---|---|---|---|---|---|---|---|
| d1 | d2 | d3 | d4 | b1 | h1 | |||
|
100 160 250 |
4 5 7 |
5 6 8 |
10 12 16 |
M 5 M 6 M 8 |
7 8 11 |
15,5 18,0 24,0 |
0,013 0,021 0,042 |
5610.00.10 5610.00.16 5610.00.25 |
|
400 600 1000 |
8 10 13 |
10 12 16 |
20 24 32 |
M 10 M 12 M 16 |
14 17 21 |
30,0 36,0 49,0 |
0,082 0,173 0,360 |
5610.00.40 5610.00.63 5610.01.00 |
|
1600 2000 2500 |
17 19 21 |
20 22 24 |
40 44 48 |
M 20 M 22 M 24 |
27 30 33 |
61,0 67,0 73,0 |
0,750 1,030 1,430 |
5610.01.60 5610.02.00 5610.02.50 |
|
3000 4000 5000 |
24 27 30 |
27 30 36 |
54 60 72 |
M 27 M 30 M 36 |
38 42 47 |
83,5 91,0 111,0 |
2,110 2,890 3,900 |
5610.03.15 5610.04.00 5610.05.00 |
|
6000 8000 10000 |
34 38 42 |
39 45 48 |
78 90 96 |
M 39 M 45 M 48 |
53 60 66 |
119,5 139,5 147,0 |
5,020 6,750 9,760 |
5610.06.30 5610.08.00 5610.10.00 |
|
12000 16000 20000 25000 |
47 52 58 63 |
52 60 68 72 |
104 120 136 144 |
M 52 M 60 M 68 M 72 |
73 81 90 100 |
158,0 185,0 211,0 221,0 |
13,100 17,700 23,800 32,700 |
5610.12.50 5610.16.00 5610.20.00 5610.25.00 |
